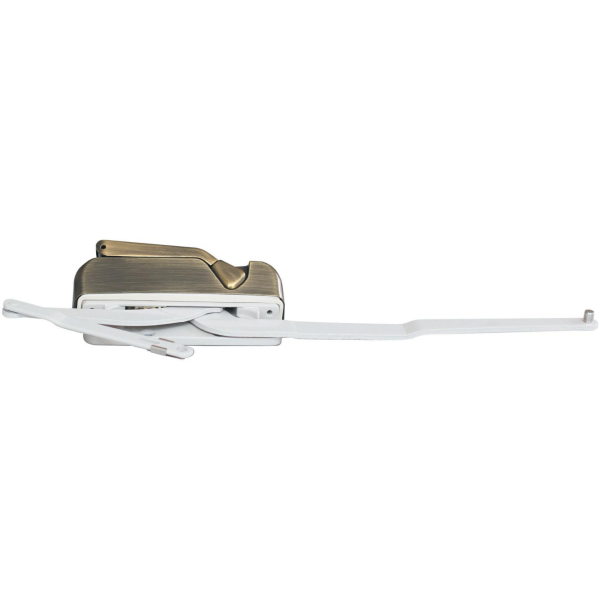

DUAL ARM OPERATOR

Categories	Window Operators
Brand	SMO
FOB port	shunde
Terms of Payment	Western Union, T/T
Update Time	Nov 21,2024

Contact Now

Favorites

Detail Information

02 SERIES - DUAL ARM OPERATOR

Main product color and For window type

MATERIAL & FINISH

The 02 family of operators, engineered to

incorporate all of the core material character

of 01 series, such as zinc cast and hardened steel

gear arms, and has its integrated look by removable

"snap-fit' cover and full-flip folding handle design.

It is getting easier for manufacture to stock only non

color operators and quickly choose different color

cover for different requirement.

02 family Dual Arm, Dyad and awning operator

is based on maxim mechanicals, provides large

window operation.

ORDERING INFORMATION

1. Choose 02 series operator,according to your

window size and style. 02 family operator

supports low profile,rear mount version and

narrow window options.

2. Specify color code. (see COLOR CHART)

3. Specify LH or RH product.(see LH or RH

DETERMINATION)

4. Select mounting hardware, getting help from

HARDWARE SHOWN CHART in each product

illumination of this Catalog.

5. Material option

02 series' steel gear arms are ultrafine

powder coated after zinc electroplated to

increase ability of resistance to corrosion.

For coast climate, we offers stainless steel

package for your option.

FIG.1 APPLICATION OF 01 SINGLE ARM OPERATOR

FIG.2 APPLICATION OF 02 SERIES DUAL ARM OPERATOR SYSTEM

FIG.3 02SERIES DUAL ARM OPERATOR (SILL MOUNT VERSION):

FIG.4 HANDLE & COVER 028-R

FIG.5 TRACK 91-29/30

FIG.6 STUD BRACKED 92-031

FIG.7 CUT-OUT OF 02 SERIES DUAL ARM OPERATOR SILL MOUNT VERSION LOW PROFILE

FIG.8 02SERIES DUAL ARM OPERATOR 026-R-012 SILL MOUNT VERSION LOW PROFILE

FIG.9 TRACK 91-31

FIG.10 APPLICATION OF 02 SERIES DUAL ARM OPERATOR

REAR MOUNT VERSION

FIG.11 02SERIES DUAL ARM OPERATOR REAR MOUNT VERSION
